Olaus "O.C." Wold's 1896 Patent

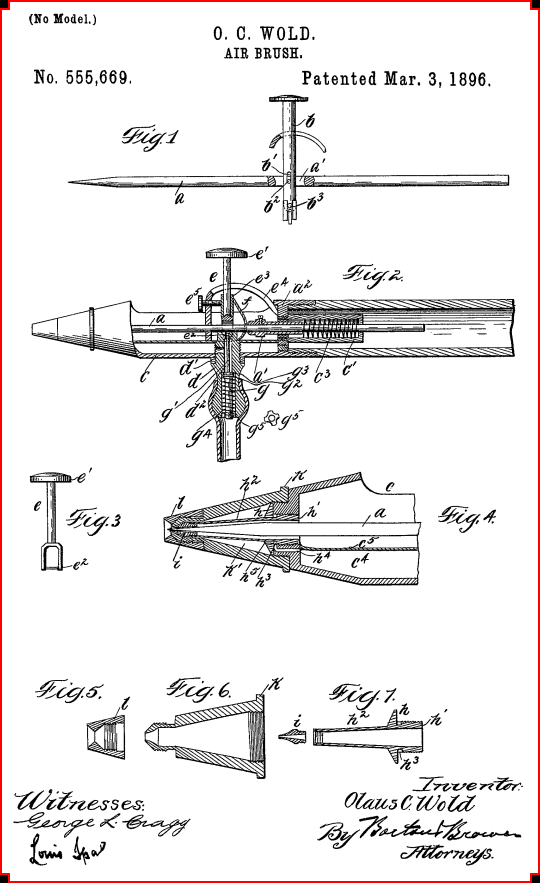

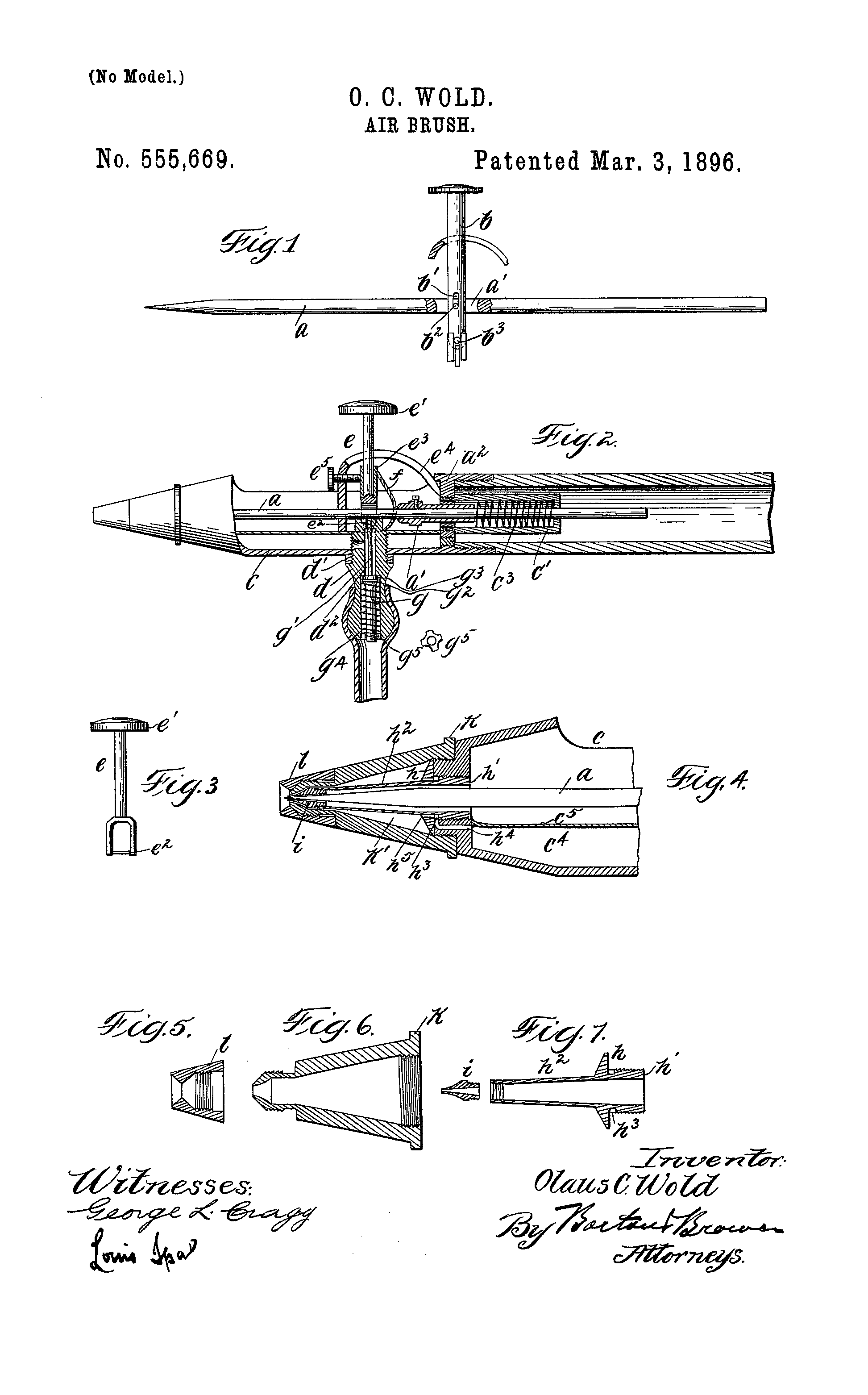

(Click on the picture below to see the full size patent drawing. I've cleaned them up and converted them to the .GIF format. WARNING, they are 80kb+ files and are a slow download but worth it. Opens in a new window!)



Wold's airbrush made several improvements over Burdick's original design. It was easier & quicker to use with it's easily replaceable needles & tips. The addition of the removable "aircap" coupled with the placement of the tip slightly protruding from the body cut down on paint clogging.
