Jens Paasche's 1905 "AB" Patent

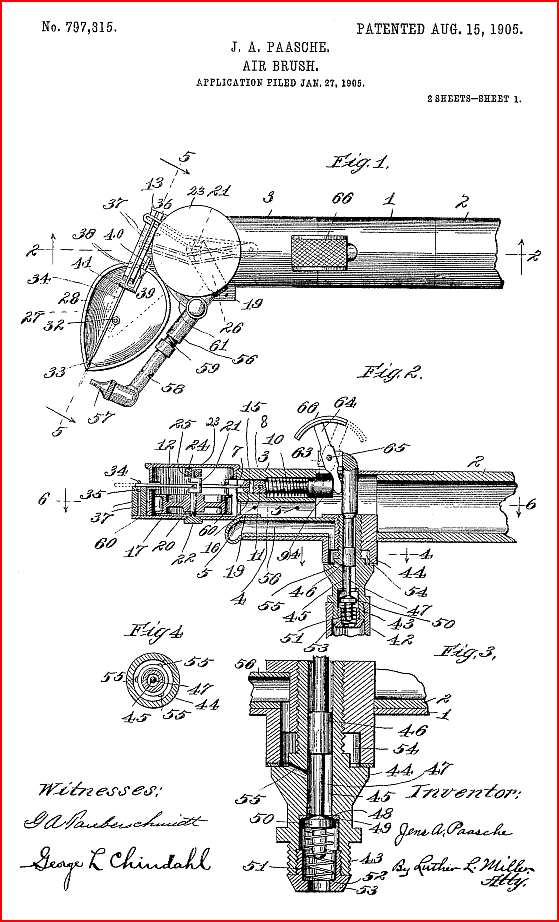

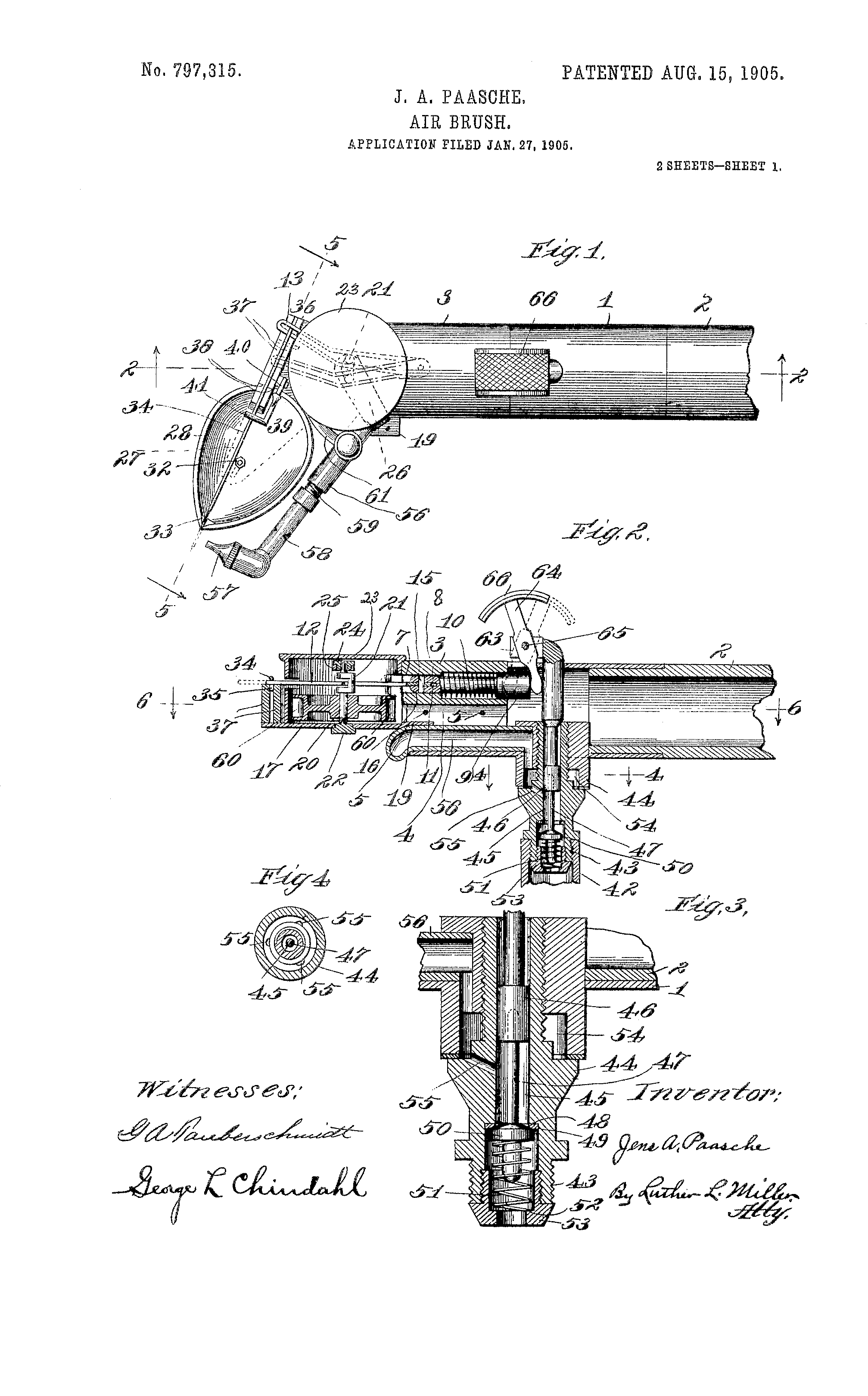

(Click on the picture below to see the full size patent drawing. I've cleaned them up and converted them to the .GIF format. WARNING, they are 80kb+ files and are a slow download but worth it. Opens in a new window!)

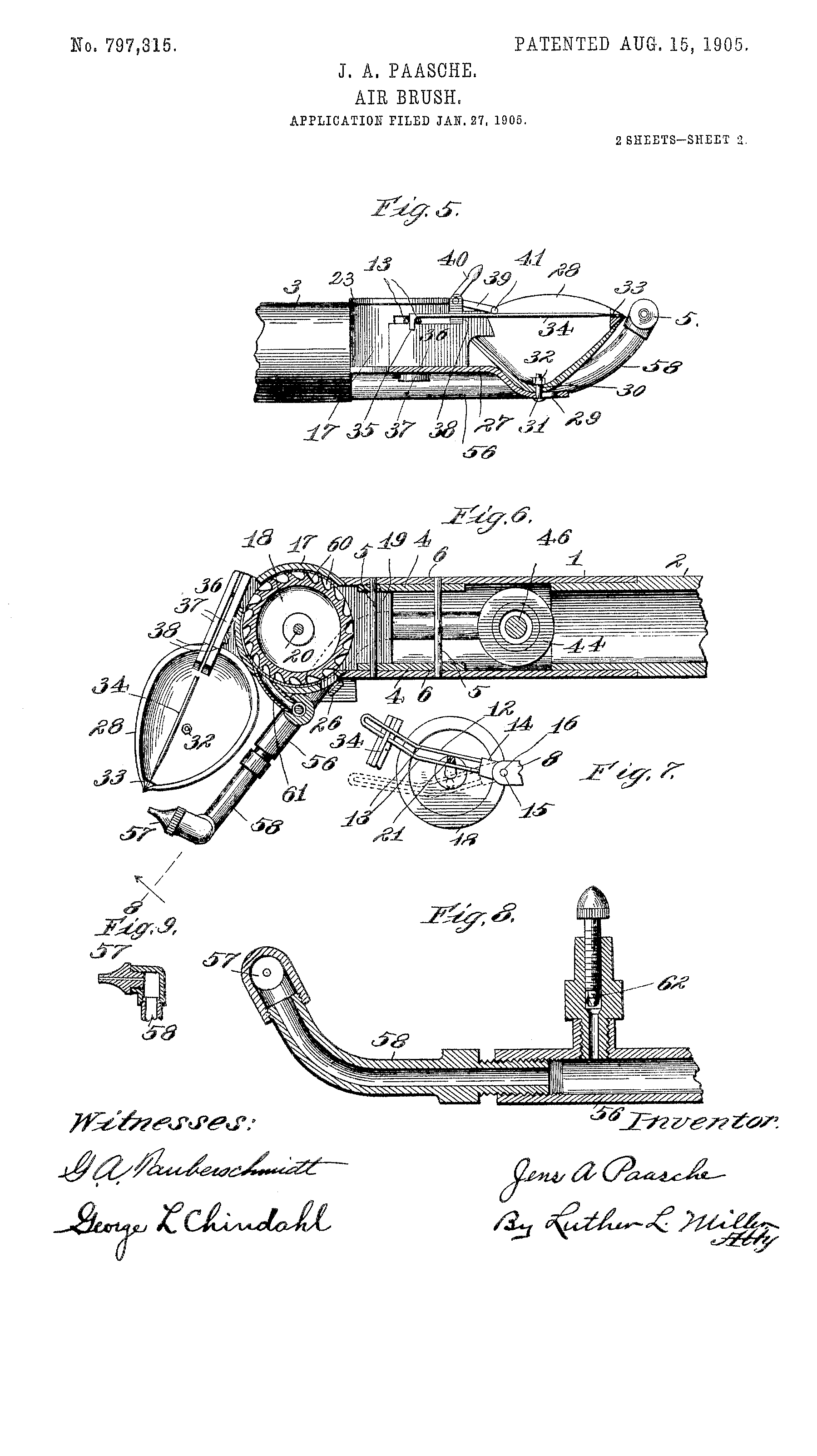

FOR FULL SIZE PAGE 2 OF THIS PATENT, CLICK HERE (NEW WINDOW!)

The grandfather of the Paasche AB. It's a major step forward in the modernization and minaturization of Walkup's design. It uses a smaller round cross section and is finger operated. The air blast tube blows the paint forward instead of down as in the Walkup model.
