Liberty Walkup's 1906 Patent

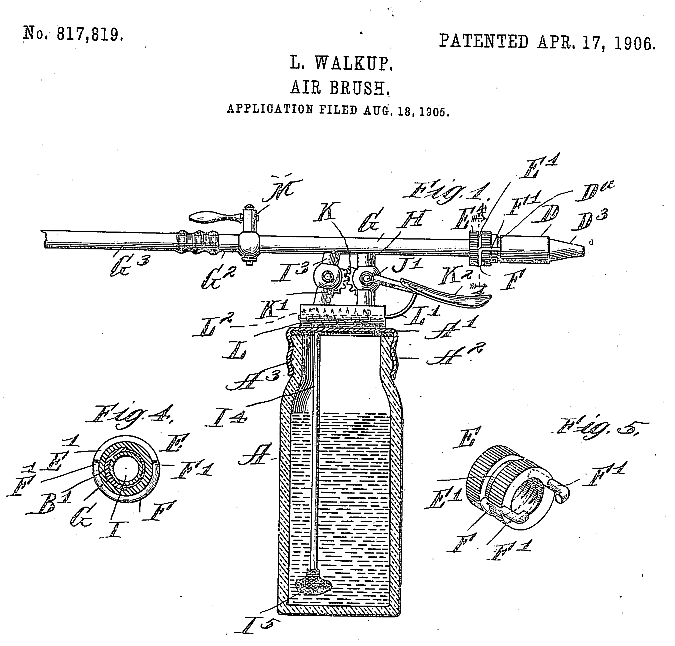

(Click on the picture below to see the full size patent drawing. I've cleaned them up. I've cleaned them up and converted them to the .GIF format. WARNING, they are 80kb+ files and are a slow download but worth it. Opens in a new window!)

The next to last Walkup airbrush patent is granted in 1905. It is too little, too late. It's a single action, internal mix airbrush/spray gun that uses a bottom mounted bottle to hold the paint.
